21/23/25 RUNABOUT

BRIEF

Designed to lead the industry, our runabouts sleek and classy profile along with its commercial grade construction and innovative performance features make this boat a game changer. With standard options like foam collars, shock mitigating seating, and a self-bailing decks, this boat is virtually indestructible and unsinkable.

Cruise in confidence knowing you can operate this boat on the open ocean or on inland rivers and lakes. With either an 18 or 22 degree deadrise at the transom, this boat has the ability to handle almost any sea state comfortably and safely.

And with our optional proprietary Crossover Tunnel System you can go where changing environments take you, on a winding river one day or the open ocean the next. Incorporated into the heart of the system is our in house designed and build hydraulic jack plate allowing you to raise the engines on the fly, letting you go anywhere with a deep-vee hull. This feature is incredibly useful for shallow water or beaching situations. And if you want to swap out the lower unit for a jet-foot you don’t have to unbolt and remount your outboard.

BOAT CHARACTERISTICS

Speed: ........................................ 45MPH + w/ Single 200HP 2 Stroke

Hull Lengths Available: ........... 21', 23', & 25'

Beam with Collar: ..................... 8' - 6"

Deadrise at Transom: ............... 18 or 22 Degrees

Deadrise at Entry: ...................... 38 or 48 Degrees

All Aluminum Construction: .... Alloy 5086 H116

Fuel Capacity: ............................. 55 Gallons

Draft: ............................................. 14 inches

Dry Weight: .................................. Approx. 3,000 lbs

*21FT Characteristics Shown

*Now Offered with a 22 Degree Deadrise



LIFETIME HULL WARRANTY

CONSTRUCTION DETAILS

Hull Plate: .............. .250"

Side Sheet: ............. .160"

Deck Plate: .............. .190"

Diamond Plate (OP)   .190"

Superstructure:....... .160"

ENGINE OPTIONS

Standard: ...................... Single 150HP Outboard

Options: ......................... Single 250HP Outboard

                  ..................... Dual 70HP Outboards

                  ..................... Dual 90HP Outboards

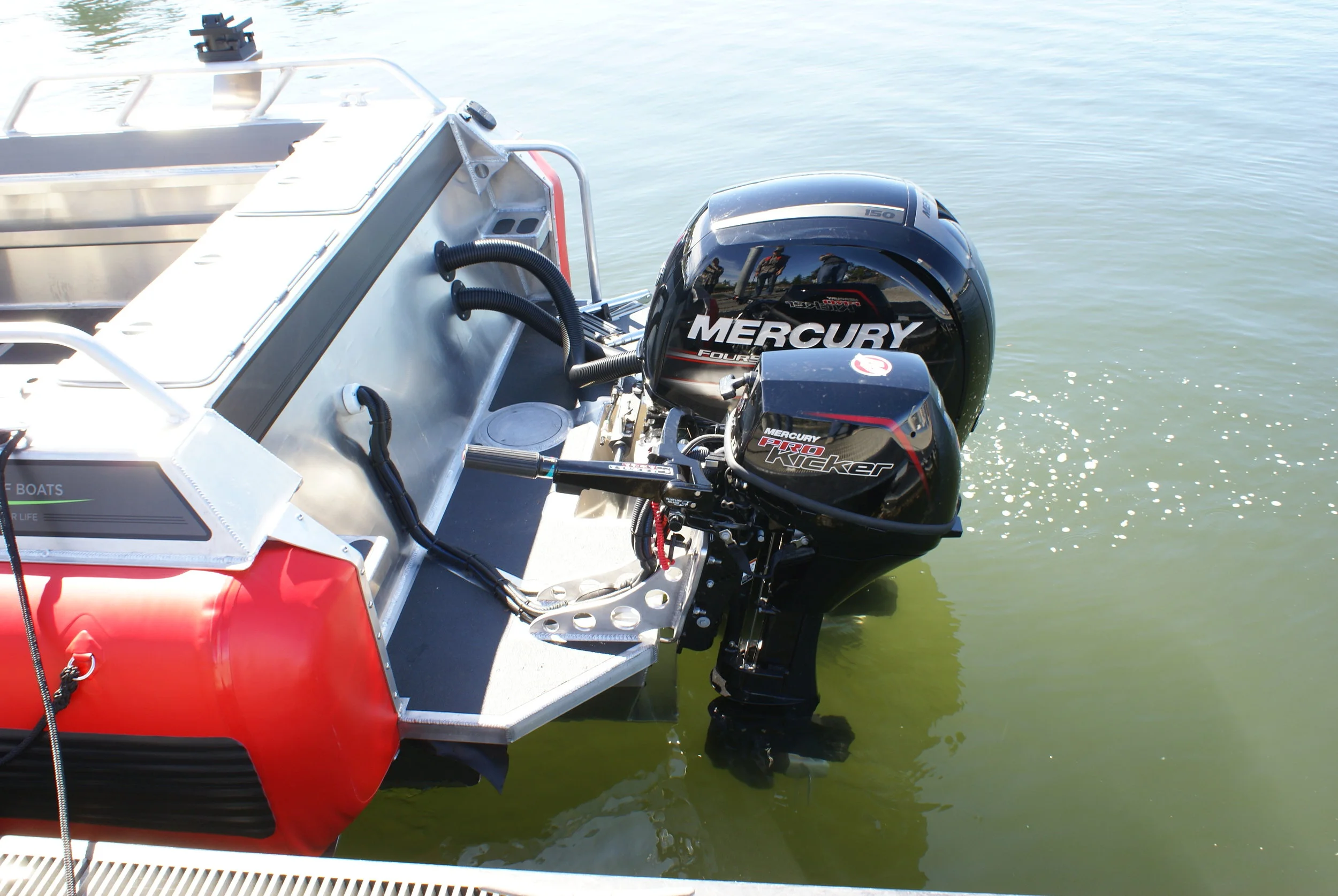

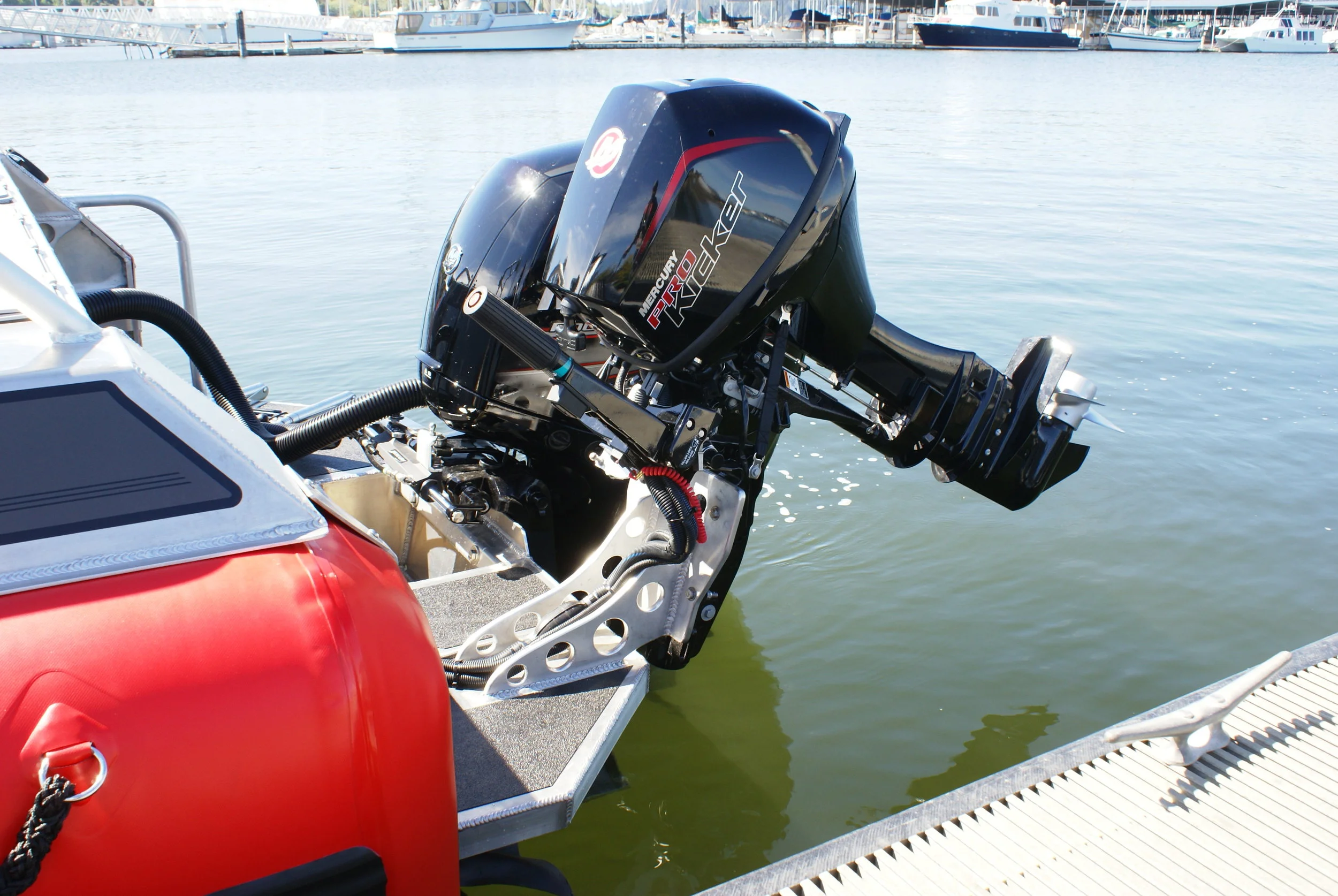

Jack Plate(s) Optional

OPtional Hull Extension

BOAT FEATURES

life proof boats outboard tunnel

"The Crossover" Vented Tunnel System (Patent Pending):  With this technology, the boats deep vee hull can operate with either a jet pump or a propeller. The heart of this system is the vented tunnel used in conjunction with a hydraulic jack plate. One of the added benefits of the vented tunnel is the ability to run a standard propeller higher in the water than any other typical vee hull. When switching to the jet foot on an outboard you typically have to remove and remount the engine because of the differences in lower unit heights. With the crossover vented tunnel system, all the user needs to do is remove the gear case, bolt on the jet pump then raise the engine using the hydraulic jack plate. With the jet foot mounted, the boat will be outfitted to operate in even shallower waters.  And with the tunnel vent closed you have the ability to operate the jet foot substantially higher than most other conventional boats.

FAST Closed Cell Foam Buoyancy Stabilizers: The FAST collar system provides superior buoyancy, unparalleled stability and maximum collision protection in a cutting edge, heavy duty package that allows your boat to operate  in the toughest conditions of its class. Manufactured with industry leading equipment and techniques, polyurethane covered foam collars provide a light weight, stable, and seaworthy ride. Used in conjunction with our collar systems our decks are water tight and self bailing which allow them to quickly evacuate any water that may enter the boat. Under the self bailing decks is additional polyethylene foam to achieve maximum flotation and to provide sound deadening for a quieter ride.

Hull Scantling Structure The boats structure is designed with toughness in mind. Using the latest in computer aided design software and vessel computation analysis, our engineering team is leading the industry with modern vessel design. All hull and superstructure components are cut with a computer controlled (CNC) router. The structure of our boats are designed using the marine industry rules and regulations published by LLoyd's Register and ISO.

Performance Fins: With our performance fins, located below the collar, the boat stays flat in the corners and provides unmatched performance while greatly reducing heal.

ABYC Rigging Compliance: We are dedicated to using ABYC rules and regulations during the design and manufacturing of our boats.

Shock Mitigated Flip up Bolster Seating: This boat comes standard with shock mitigated seating and flip up bolster seats. Varying grades of shock mitigation seating are available as options.

BOAT VIDEOS

BOAT PICTURES

OPTIONS

Please call to discuss options. This boat can be ordered with options that are not shown below. The lists shown below are just some of the available options we can design into your platform.

STANDARD FEATURES

Hull Features:

5086 Aluminum Plate, Lifting Strakes and Performance Fins

Self Bailing Deck with Four High Volume Scupper Drains

3/4" Aluminum Hand Rails

Aluminum Wrapped Polyethylene Foam Under Decks

Removable Center Deck Plate for Fuel Tank Access

Aluminum Welded, Baffled, Epoxy Coated Fuel Tank

55 Gallon Fuel Tank for 21ft Model

70 Gallon Fuel Tank for 23ft Model

Cross Over System with Vented Tunnel Hull

Welded Bow Eye and Welded Stern Eyes

Welded In Speed Shoe Pad in Bottom Plate

Anchor Locker

Six Welded On Cleats

Welded on Anode Mounts



Rigging Features:

304 Stainless Steel Hardware

SS Internal Lifting Eyes

FAST (Foam Air Stabilized Technologies) Collar System

Epoxy Painted Side Sheets Behind Collar System

Two Sport Marine Grade Seats

Driver and Passenger Shock Mitigated Seating

Rear Storage Seats and Cushions

Navigation Lights

Anchor Light

Glove Box

Fuel Gauge

Tachometer

Compass

Navigation Horn

Two 12V Electrical Plugs

Port and Starboard Wipers

Electric Bilge Pump w/ auto switch 2000GPM

Fuel Water Separator

Hydraulic Steering

Robust Rigging and Electrical System with Dedicated Engine and House AGM Batteries

Safety Walk Non-Skid

Swim Step and Fold Down Ladder

Four Folding Cup Holders



Standard Trailer:  Galvenized Trailer with OTR Straps



optional Upgrades

Collar Options:

Color Choice

Rub Strake Color Options - Grey or Black



Fishing Package:

Bait Well w/Aerator

Downrigger Mounts

12V ACC Plugs for Downriggers

 Fish Box

 Fresh Wash Down Pump

Rod Holders

 Hi Lift Trolling Motor Mount (Single Engine Configuration)



Other Available Options:

Hydraulic Jack Plate

Diamond Plate Decking

Arch

Ski Tow Mount on Arch

VHF Radio

Tilt Steering

Bimini Top and Canvas Options

Navigation Package

 Radar Package (with Arch Option Only)

Stereo System with 4 Speakers

SS Cup Holders

Prices and Specifications Subject to Change Without Notice. Photos May Show Optional Equipment

Boat Characteristics are Based on Testing Done by Life Proof Boats -  Customer Realized Values May Vary
