23/25/27ft INBOARD FULL CABIN

BRIEF

Available with either outboards or as an inboard diesel this boat can be configured to suit your exacting purpose. . At the shortest model length of 23ft this is the roomiest cabin in its class and offers unmatched safety and performance.

With Mercury's new 3.0 Turbo Diesel engine this boat has serious performance on command, while also providing economical fuel consumption and greater torque. And with the unique fan tail design you have the working room on deck of an additional three feet. The fan tail is cantilevered over the sterndrive giving added protection to the lower unit and safety while fishing or handling lines. Jumping up to the larger hull lengths, you gain even more deck room.

Another class leading feature is our vented tunnel design for sterndrives, patent pending, which allows us to mount the sterndrive higher than any other in its class. This feature provides added safety, increased performance, and better fuel economy.

For those who like outboards on the transom you can choose either a single or dual setup. And with an optional kicker motor its sure to have the preferred setup for every fisherman.

Inside the cuddy you will find 6' -7" of sleeping accommodations. With the option of a full galley you can have a Dometic removable fridge unit, a cook top stove and a fresh water sink. With an available shore power option this is the perfect boat to take on trips anywhere you desire.

BOAT CHARACTERISTICS

Speed: ...................................................  45MPH W/ 3.0L MERCURY TDI

Hull Lengths Available: .....................  23'& 25' & 27'

Beam with Collar: ..............................  8' - 6" or 9'

Deadrise at Transom: .......................  18 or 22 Degrees

Deadrise at Entry: .............................  38 or 48 Degrees

All Aluminum Construction: ...........   Alloy 5086 H116

Fuel Capacity: ...................................   65 - 100 Gallons

Dry Weight: ........................................   Approx. 5,500 lbs

*23ft Model characteristics shown with 18 degree deadrise and 3.0L inboard diesel engine.

LIFETIME HULL  WARRANTY



Outboard Variant

ENGINE OPTIONS

I/O Options: ..................................... Mercury 260HP TDI

                  ................................. Volvo 300HP D4





CONSTRUCTION DETAILS

Hull Plate: ............ .250"

Side Sheet: .......... .190"

Deck Plate: ............ .190"

Diamond Plate (OP)  .190"

Superstructure:.... .160"

BOAT FEATURES

lifeproofboats sterndrive tunnel

Vented Tunnel System for Sterndrive Engines (Patent Pending): Our new sterndrive tunnel hull, patent pending, allows the sterndrive to be mounted higher on the transom than other manufactures do. This means less drag, less drag means better fuel efficiency and more speed. This also means less draft for navigation in shallower waters, and the ability to trim the lower unit higher than the bottom of the boat, preventing damage to the lower unit in the event the boat sits on dry ground.



FAST Closed Cell Foam Buoyancy Stabilizers: The FAST collar system provides superior buoyancy, unparalleled stability and maximum collision protection in a cutting edge, heavy duty package that allows your boat to operate  in the toughest conditions of its class. Manufactured with industry leading equipment and techniques, polyurethane covered foam collars provide a light weight, stable, and seaworthy ride. Used in conjunction with our collar systems our decks are water tight and self bailing which allow them to quickly evacuate any water that may enter the boat. Under the self bailing decks is additional polyethylene foam to achieve maximum flotation and to provide sound deadening for a quieter ride.

Hull Scantling Structure: The boats structure is designed with toughness in mind. Using the latest in computer aided design software and vessel computation analysis, our engineering team is leading the industry with modern vessel design. All hull and superstructure components are cut with a computer controlled (CNC) router. The structure of our boats are designed using the marine industry rules and regulations published by LLoyd's Register and ISO.

Performance Fins: With Inventech Marine's performance fins, located below the collar the boat stays flat in the corners. They provide unmatched performance and greatly reduce heal in corners.

Fan Tail: With the ergonomic fan tail design, you have full walk around access at the back of the boat. When standing on the platform you are over the sterndrive which provides open access for fisherman or service men who want to keep their lines out of the prop. It gives this boat un-matched deck room compared to other boats. Another feature of the fan tail design is the engine protection it also provides.

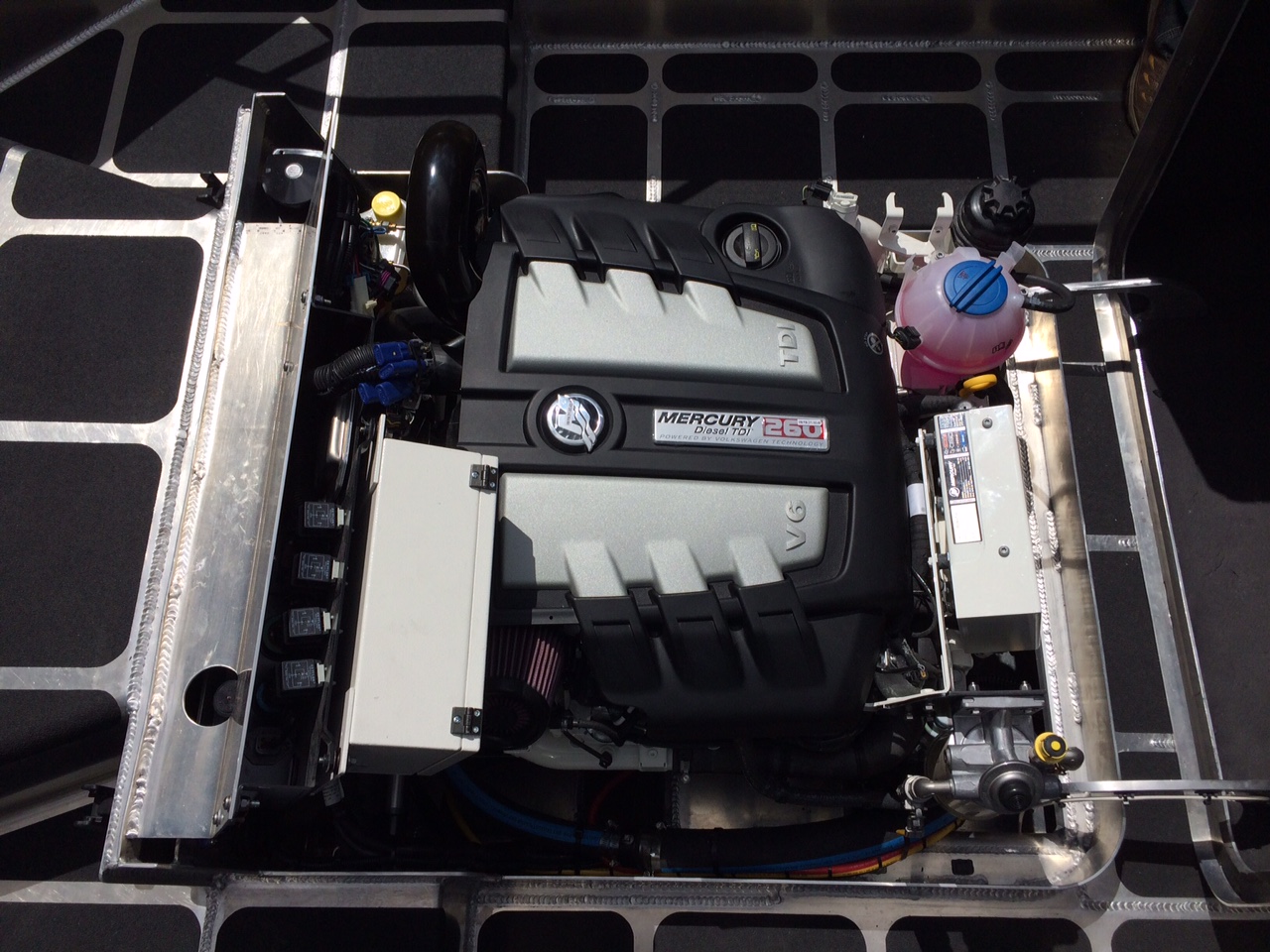

Mercury's 3.0L Diesel Engine with Smartcraft: This boat is outfitted with Mercury's new diesel sterndrive. It provides one of the best power to weight ratio's in class while still holding a commercial rating. This engine is 80% quieter than traditional diesel engines with no smoke or odors. It is cleaner, faster, and smoother. With Mercury's new SmartCraft system it provides digital throttle and shifting for smooth and immediate response.

ABYC Rigging Compliance: We are dedicated to using ABYC rules and regulations during the design and manufacturing of our boats.

Shock Mitigated Flip up Bolster Seating: This boat comes with shock mitigated seating as a standard. Varying grades of shock mitigation.




BOAT VIDEOS

BOAT PICTURES

OPTIONS

Please call to discuss options. This boat can be ordered with options that are not shown below. The lists shown below are just some of the available options we can design into your platform.

STANDARD FEATURES

Hull Features:

5086 Aluminum Plate, Lifting Stakes, and Performance Fins

Self Bailing Deck with Two Scuppers

3/4" Aluminum Hand Rails

Aluminum Wrapped Polyethylene Foam Under Decks

Removable Center Deck Plate for Fuel Tank Access

Aluminum Welded, Baffled, Epoxy Coated Fuel Tank

Sterndrive Vented Tunnel Hull

Welded In Speed Shoe Pad in Bottom Plate

Anchor Locker

Welded Bow Eye and Welded Stern Eyes

Six Welded On Cleats

Welded on Anode Mounts



Rigging Features:

18-8 Stainless Steel Hardware

SS Internal Lifting Eyes

FAST (Foam Air Stabilized Technologies) Collar System

Epoxy Painted Side Sheets Behind Collar System

Two Sport Marine Grade Seats

Driver and Passenger Shock Mitigated Seating

Diamond Sea Glaze Windows and Door Package

Interior Cushion Package

Navigation Lights

Anchor Light

Hatch on Cuddy Roof

Cuddy Portlights

Locking Glove Box

Fuel Gauge

Tachometer

Compass

Navigation Horn

Four 12V Electrical Plugs

Electric Bilge Pump w/ auto switch 2000GPM

Fuel Water Separator

Hydraulic Steering

Robust Electrical System with Dedicated Engine and House AGM Batteries

Sacrificial Anode

Safety Walk Non-Skid

Fold Down Swim Ladder

Four Folding Cup Holders



Standard Trailer:  Galvenized Trailer with OTR Straps

Optional Upgrades

 Collar Options:

Color Choice

Rub Strake Color - Black or Grey

Fishing Package:

Downrigger Mounts

12V ACC Plugs for Downriggers

Raw Water Wash Down Pump

Rod Holders

Hi-Lift Trolling Motor Mount



Other Available Options:

Spotter Light on Cabin

Increased Hull Thickness to 1/4"

Diamond Plate Decking

Deck Lighting

VHF Radio

Cabin Heater

110V Shore Power

Fresh Water Sink

Cooking Stove

Dometic Refrigerator and Freezer, Removable Cooler

Cabin Fans

Anchor Windlass

Tilt Steering

Exterior Cushion Package

Navigation Package

Radar Package

Stereo System with Four Speakers

Tow Mount on Arch

SS Cup Holders



Prices and Specifications Subject to Change Without Notice. Photos May Show Optional Equipment

Boat Characteristics are Based on Testing Done by Life Proof Boats -  Customer Realized Values May Vary
