27/29 WIDE FULL CABINS



BRIEF

With a 10' Beam we offer a lot more versatility with the usable space in the cabin. You choose between the following cabin layouts; either traditional 4 suspension seats, 2 suspension seat with rear benches, 2 suspension seats with galley, or with the 29' version you can have any of the above configurations with an optional full height head added to the back of the cabin.

With a 22 degree deadrise, "speed shoe", performance fins, and a radical 48 degree entry, this platform has designed to be fast, nimble and smooth in rough water conditions. With the incorporated 15" wide collars and self bailing decks, you can rest at ease you are in a boat that will completely bail its decks empty of water in under 60 seconds if a wave were to crash over the gunnels.

BOAT CHARACTERISTICS

Speed: .............................................  55MPH W/ twin 250HP Outboards

Hull Lengths Available: ................  27'& 29'

Beam with Collar: .........................  10'

Deadrise at Transom: ...................  22 Degrees

Deadrise at Entry: .........................  48 Degrees

All Aluminum Construction: .......  Alloy 5086 H116

Fuel Capacity: .................................  160+ Gallons

Dry Weight: ......................................  10,000 lbs

*27FT Characteristics Shown

LIFETIME HULL & FOAM WARRANTY

CONSTRUCTION DETAILS

Hull Plate: ............ .250"

Side Sheet: .......... .190"

Deck Plate: ........... .190"

Diamond Plate (OP)  .190"

Superstructure:.... .160"

ENGINE OPTIONS

Standard: ................ Twin 200HP Outboards

Optional: ..........Up to Twin 350HP Outboards





BOAT FEATURES

FAST Closed Cell Foam Buoyancy Stabilizers: The FAST collar system provides superior buoyancy, unparalleled stability and maximum collision protection in a cutting edge, heavy duty package that allows your boat to operate  in the toughest conditions of its class. Manufactured with industry leading equipment and techniques, polyurethane covered foam collars provide a light weight, stable, and seaworthy ride. Used in conjunction with our collar systems our decks are water tight and self bailing which allow them to quickly evacuate any water that may enter the boat. Under the self bailing decks is additional polyethylene foam to achieve maximum flotation and to provide sound deadening for a quieter ride.

Hull Scantling Structure: The boats structure is designed with toughness in mind. Using the latest in computer aided design software and vessel computation analysis, our engineering team is leading the industry with modern vessel design. All hull and superstructure components are cut with a computer controlled (CNC) router. The structure of our boats are designed using the marine industry rules and regulations published by LLoyd's Register and ISO.

Performance Fins: With our performance fins, located below the collar, the boat stays flat in the corners and provides unmatched performance while greatly reducing heal.

ABYC Rigging Compliance: We are dedicated to using ABYC rules and regulations during the design and manufacturing of our boats.

Shock Mitigated Flip up Bolster Seating: This boat comes with shock mitigated seating as a standard option. Varying grades of shock mitigation seating are available as options.

27FT Hull Configuration

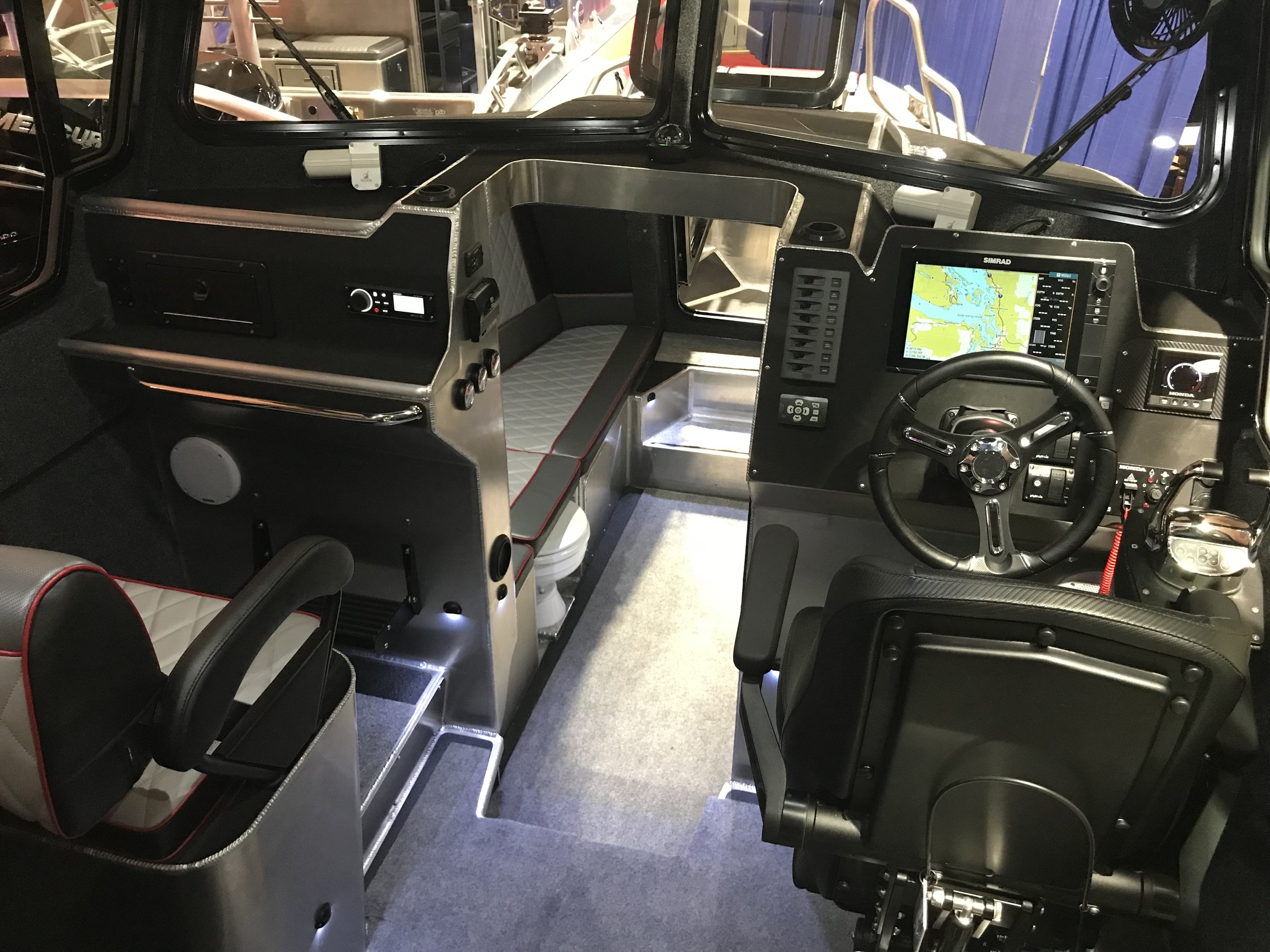

27FT Full Cabin w/ Galley


29FT Hull Configuration

29 x 10 - GA.jpg

BOAT VIDEOS

OPTIONS

Please call to discuss options. This boat can be ordered with options that are not shown below. The lists shown below are just some of the available options we can design into your platform.

STANDARD FEATURES

Hull Features:

5086 Aluminum Plate & Lifting Strakes,

Self Bailing Deck with Four Scuppers

3/4" Aluminum Hand Rails

Aluminum Wrapped Polyethylene Foam Under Decks

Removable Center Deck Plate for Fuel Tank Access

Aluminum Welded, Baffled, Epoxy Coated Fuel Tank

Welded In Speed Shoe Pad in Bottom Plate

Anchor Locker

Welded Bow Eye and Welded Stern Eyes

18-8 Stainless Steel Hardware

SS Internal Lifting Eyes

Four Welded On Cleats

Welded on Anode Mounts

All Aluminum Welded Pipe Arch



Rigging Features:

FAST (Foam Air Stabilized Technologies) Collar System

Epoxy Painted Side Sheets Behind Collar System

Two Sport Marine Grade Seats

Driver and Passenger Shock Mitigated Seating - Springfield Marine Shockers

Navigation Lights

Anchor Light

Tempress Hatches

Locking Glove Box

Fuel Gauge

Tachometer

Compass

Navigation Horn

Two 12V Electrical Plugs

Electric Bilge Pump w/ auto switch 2000GPM

Sacrificial Anode

Fuel Water Separator

Hydraulic Steering

Robust Electrical System with Dedicated Engine and House AGM Batteries

3M Safety Walk Non-Skid

Four Folding Cup Holders



Standard Trailer:  EZ Loader with OTR Straps

AVAILABLE OPTIONS

Collar Options:

 Color Choice

Rub Strake Color - Grey or Black





Other Available Options:

Upgraded Shox or Shockwave Seating

Bimini Top with Canvas Options

Deck Lighting

VHF Radio

Tilt Steering Helm

Exterior Cushion Package

Garmin or similar Navigation Package

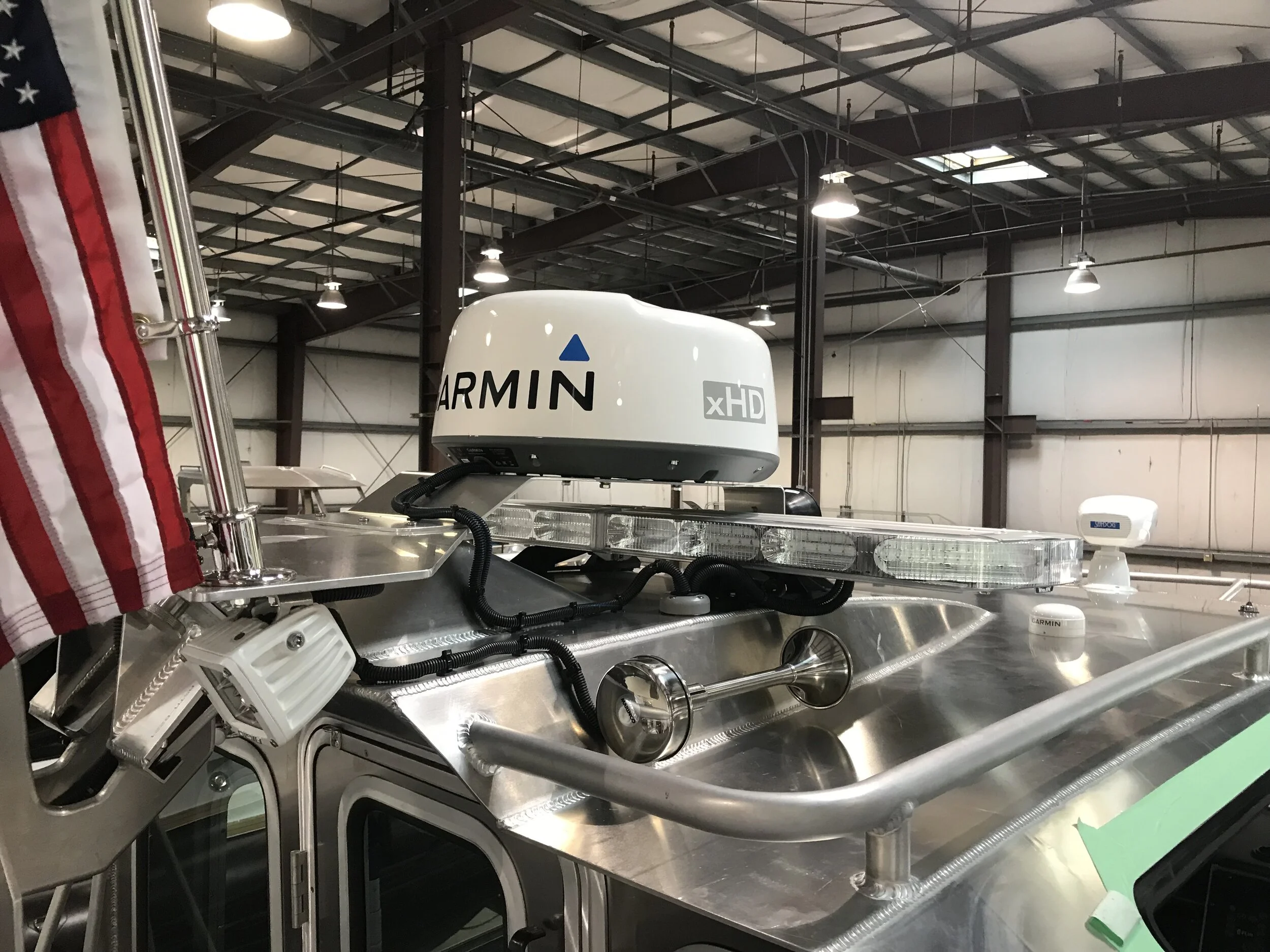

Garmin or similar Radar Package

Fusion Stereo System with Four Speakers

SS Cup Holders

Prices and Specifications Subject to Change Without Notice. Photos May Show Optional Equipment

Boat Characteristics are Based on Testing Done by Life Proof Boats -  Customer Realized Values May Vary
