30/32ft CONVERTIBLE CABIN

BRIEF

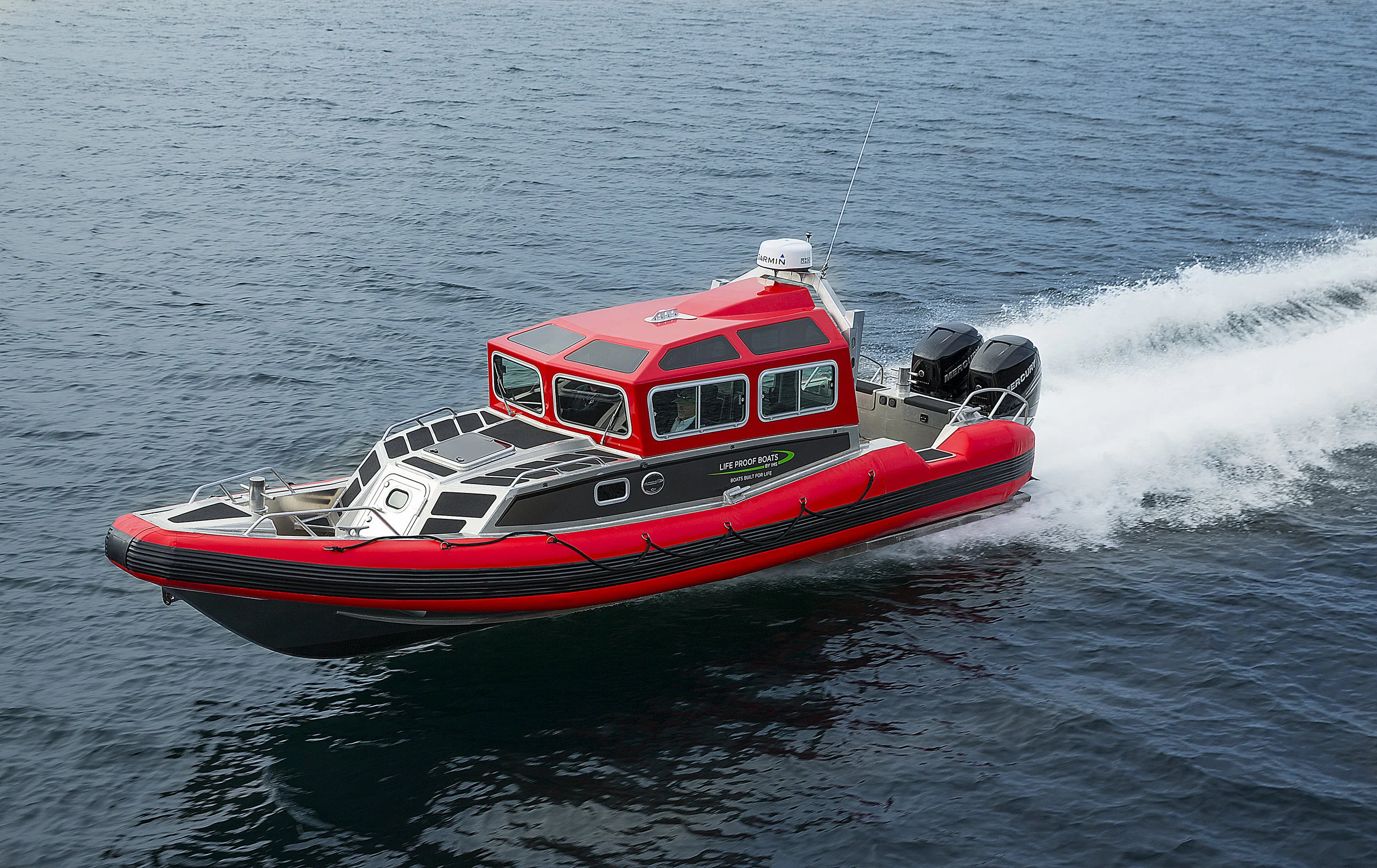

Our 30ft removable cabin model is the ultimate platform. We brought together a racing inspired hull design, advanced collar system and removable cabin to create a class leading boat that will blow you away. This boat can safely operate in open ocean conditions while still sporting a spacious interior layout. This is accomplished with a unique cabin design in which we were able to gain an additional 12" of interior beam over other class competitors. All this is achieved while still keeping the boats beam at 8' 6".

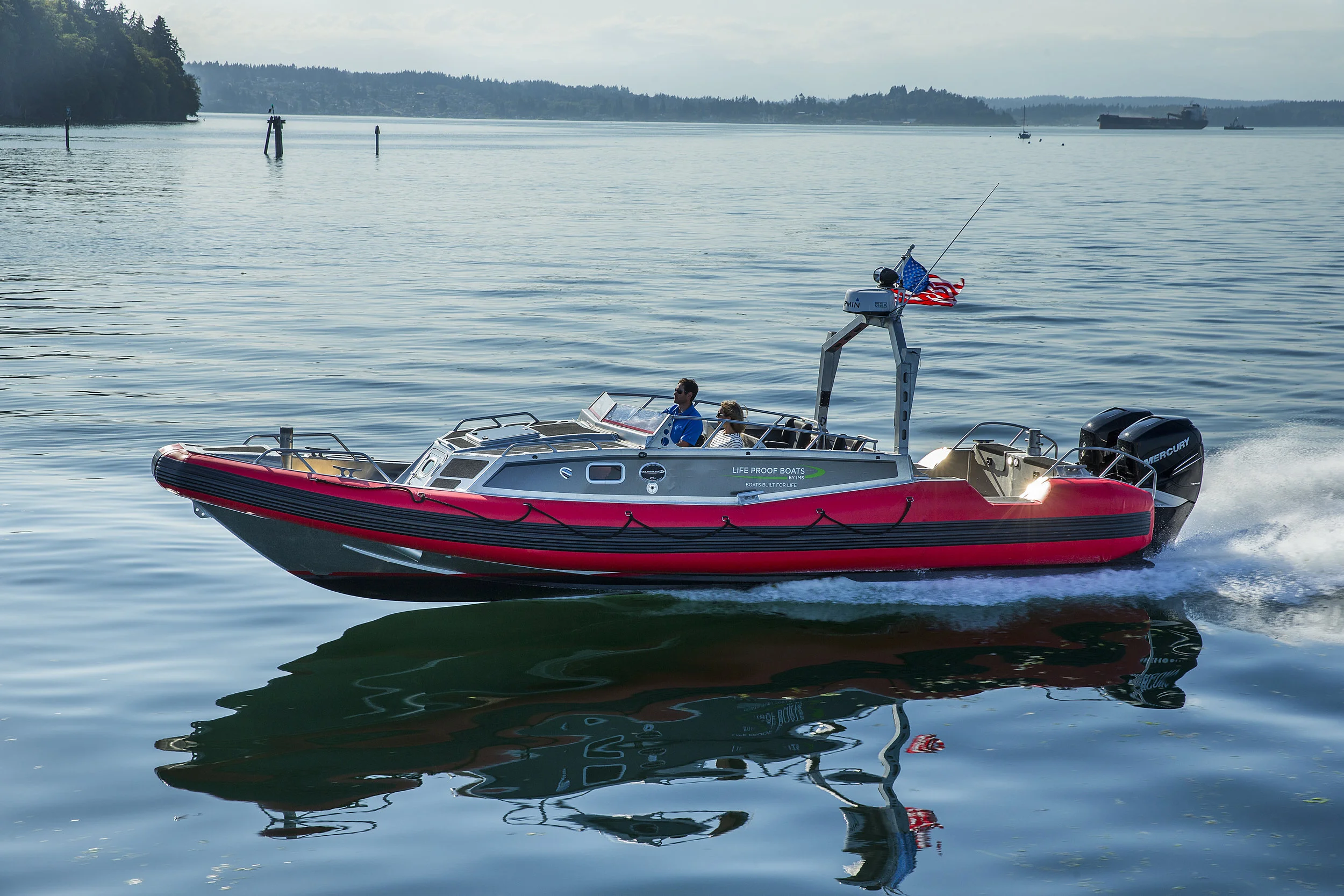

One of the most unique features of this boat is the removable cabin. Unlike any current competing platform, the cabin can be unbolted and removed from the boat creating an open cockpit boat when desired. The best part is the cabin can be removed with no external components. The davit system used to remove the house is part of the arch.



Boat Characteristics

Speed: .................................................  60MPH W/ Twin 300HP 4 Strokes

Hull Lengths Available: .................... 30' & 32'

Beam with Collar: ............................ 8' - 6"

Deadrise at Transom: ..................... 22 Degrees

Deadrise at Entry: ........................... 48 Degrees

All Aluminum Construction: ........  Alloy 5086 H116

Max Engine HP: ................................  Twin 350HP Outboards

Fuel Capacity: ..................................  120 Gallons

Dry Weight: .......................................  Approx. 7,600 lbs

*30ft Model Characteristics Shown

LIFETIME HULL WARRANTY



ENGINE OPTIONS

Standard: ... Dual 225HP Outboards

Options: ...... Dual 250HP Outboards

...................... Dual 300HP Outboards

...................... Dual 350HP Outboards

CONSTRUCTION DETAILS

Hull Plate: .............. .250"

Side Sheet: ............. .190"

Deck Plate: .................... .190" STD

Diamond Plate (OP) .190"

Superstructure:....... .160"

BOAT FEATURES

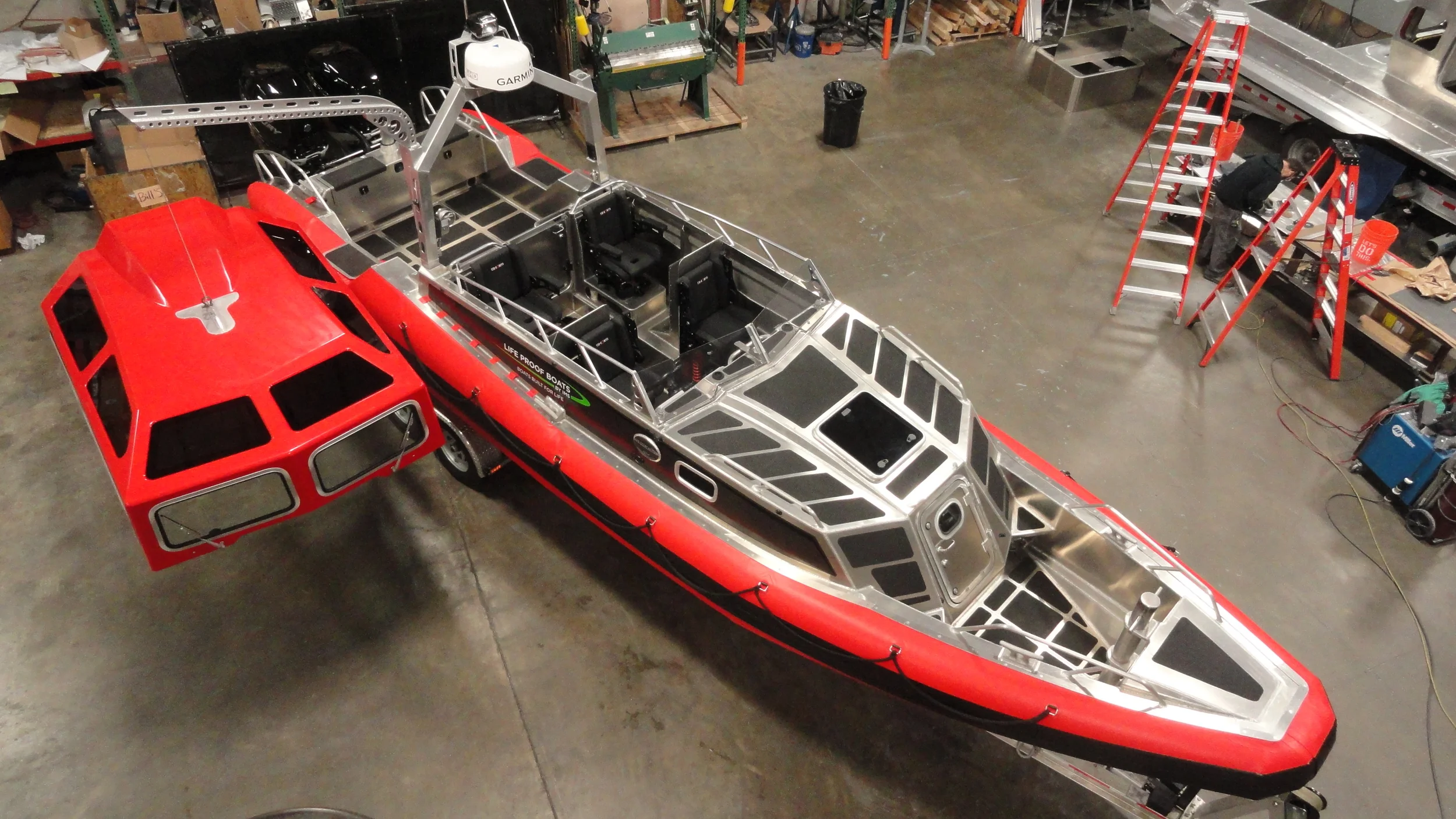

Removable Fiberglass Cabin Top: The house for the cabin is constructed out of fiberglass and is able to be unbolted and removed from the boat when desired. Incorporated into the boats arch is the davit and winch needed to remove the cabin house. So no external lifting devices are needed. One person can easily remove the house top with ease.

FAST Closed Cell Foam Buoyancy Stabilizers: The FAST collar system provides superior buoyancy, unparalleled stability and maximum collision protection in a cutting edge, heavy duty package that allows your boat to operate  in the toughest conditions of its class. Manufactured with industry leading equipment and techniques, polyurethane covered foam collars provide a light weight, stable, and seaworthy ride. Used in conjunction with our collar systems our decks are water tight and self bailing which allow them to quickly evacuate any water that may enter the boat. Under the self bailing decks is additional polyethylene foam to achieve maximum flotation and to provide sound deadening for a quieter ride.

Hull Scantling Structure:  The boats structure is designed with toughness in mind. Using the latest in computer aided design software and vessel computation analysis, our engineering team is leading the industry with modern vessel design. All hull and superstructure components are cut with a computer controlled (CNC) router. The structure of our boats are designed using the marine industry rules and regulations published by LLoyd's Register and ISO.

Performance Fin.jpg

Performance FinsWith our performance fins, located below the collar, the boat stays flat in the corners and provides unmatched performance while greatly reducing heal.

ABYC Rigging Compliance: We are dedicated to using ABYC rules and regulations during the design and manufacturing of our boats.

Shock Mitigated Seating: This boat comes with shock mitigated seating as a standard. Varying grades of shock mitigation seating are available as options.

BOAT VIDEOS

BOAT PICTURES



OPTIONS

Please call to discuss options. This boat can be ordered with options that are not shown below. The lists shown below are just some of the available options we can design into your platform.

STANDARD FEATURES

Hull Features:

5086 Aluminum Plate, Lifting Strakes, and Performance Fins

Self Bailing Deck With Scuppers Both Fwd and Aft

3/4" Aluminum Hand Rails

Aluminum Wrapped Polyethylene Foam Under Decks

Removable Center Deck Plate for Fuel Tank Access

Aluminum Welded, Baffled, Epoxy Coated Fuel Tank

Welded In Speed Shoe Pad in Bottom Plate

Fwd Storage Locker and Tow Post

Welded Bow Eye and Welded Stern Eyes

Six Welded On Cleats

Welded on Anode Mounts

Aluminum Arch



Rigging Features:

18-8 Stainless Steel Hardware

SS Internal Lifting Eyes

FAST (Foam Air Stabilized Technologies) Collar System

Epoxy Painted Side Sheets Behind Collar System

Driver and Navigator Shock Mitigated Seating

Navigation Lights

Anchor Light

Tempress Hatches

Locking Glove Box

Fuel Gauge

Tachometer

Compass

Navigation Horn

Two 12V Electrical Plugs

Electric Bilge Pump w/ auto switch 2000GPM

Fuel Water Separator

Hydraulic Steering

Sacrificial Anode

Robust Rigging and Electrical System with Dedicated Engine and House AGM Batteries

3M Safety Walk Non-Skid

Four Folding Cup Holders

Trailer



optional Upgrades

Collar Options:

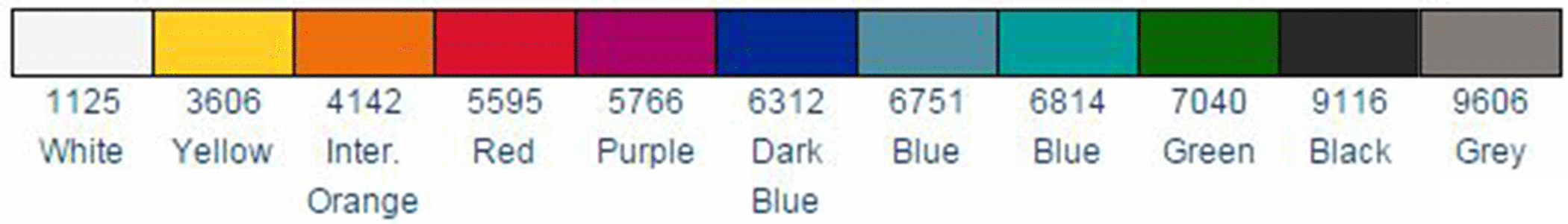

 Color Choice

Rub Strake Color Options - Grey or Black



Other Available Options:

 Diamond Plate Decking

Shock Mitigation Seating for Passengers

Bimini Top with Canvas Top

Deck Lighting

VHF Radio

Tilt Steering Helm

Exterior Cushion Package

Interior Cushion Package

Navigation Package

Radar Package

Stereo System with Four Speakers

SS Cup Holders

Prices and Specifications Subject to Change Without Notice. Photos May Show Optional Equipment

Boat Characteristics are Based on Testing Done by Life Proof Boats -  Customer Realized Values May Vary
