29/31/33/35/37 Hard Top

BRIEF

Whether its open ocean sport fishing, pleasure cruising, or a weekend get away, our 10' Beam Hard Top center console, will get you there in style and comfort. Tailored to our world class 22 degree deep-vee hull, and innovate performance fins & strakes you will be amazed with the boats ability to glide through the water. The model sports a stylish hard top design, and cuddy large enough for a head, and berth. With seating for 13 adults, and a semi-customization rear cockpit layout, there is plenty of room for entertaining and enjoying your time on the water.

With safety as a key fundamental design characteristic, the vessel features foam collars which wrap around the vessel like a life jacket for the boat. The decks are also self-bailing, with four high volume scuppers to remove any water quickly.

BOAT CHARACTERISTICS

Speed: ............................................  55MPH + w/ 300HP Outboard

Hull Lengths Available: ...............   29', 31', 33', 35' & 37'

Beam with Collar: ........................  10'

Deadrise at Transom: ................. 22 Degrees

Deadrise at Entry: ........................  48 Degrees

All Aluminum Construction: ......  Alloy 5086 H116

Fuel Capacity: ..............................  200-300 Gallons

Dry Weight: ....................................  Approx. 9,000 lbs

*29ft Model Characteristics Listed

LIFETIME HULL  WARRANTY


ENGINE OPTIONS

Standard: ......................... Twin 200HP Outboards

Options: .......................... Twin 400HP Outboards

                  ....................... Triple 350HP Outboards

CONSTRUCTION DETAILS

Hull Plate: .............. .250"

Side Sheet: ............ .190"

Deck Plate: .............. .190"

Superstructure:..... .160"


BOAT FEATURES

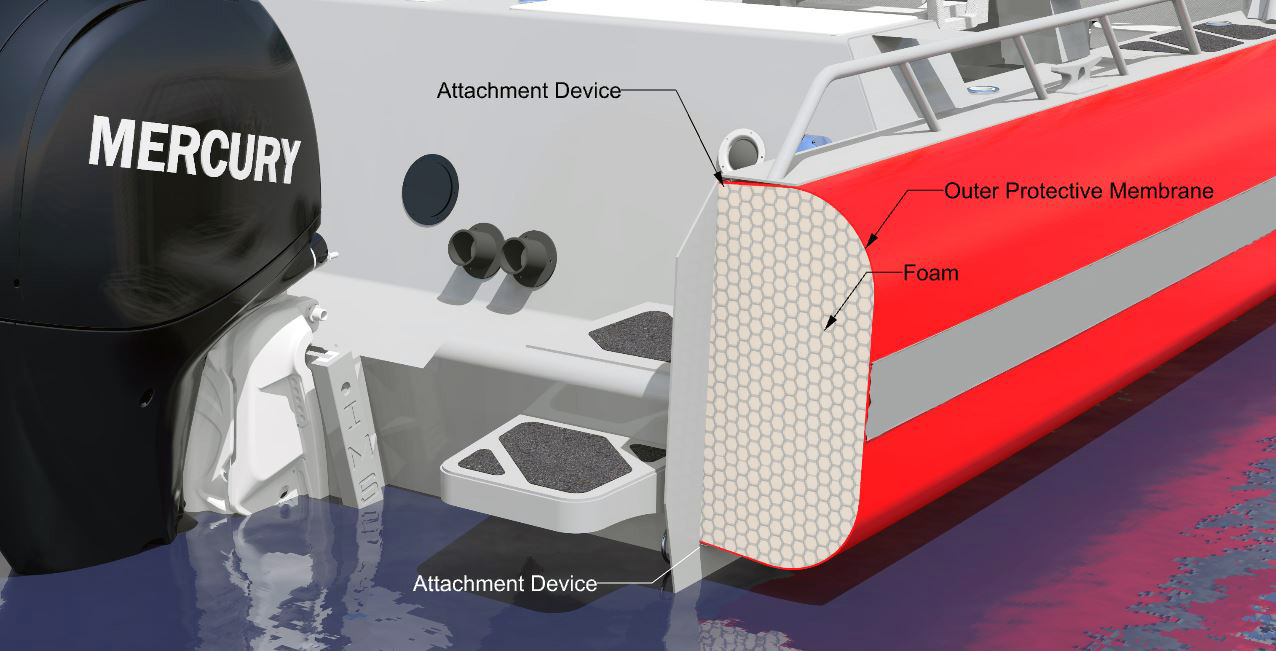

 Cut Away View of 100% Foam Collar

Cut Away View of 100% Foam Collar

FAST Closed Cell Foam Buoyancy Stabilizers: The FAST collar system provides superior buoyancy, unparalleled stability and maximum collision protection in a cutting edge, heavy duty package that allows your boat to operate  in the toughest conditions of its class. Manufactured with industry leading equipment and techniques, polyurethane covered foam collars provide a light weight, stable, and seaworthy ride. Used in conjunction with our collar systems our decks are water tight and self bailing which allow them to quickly evacuate any water that may enter the boat. Under the self bailing decks is additional polyethylene foam to achieve maximum flotation and to provide sound deadening for a quieter ride.

Hull Scantling Structure: The boats structure is designed with toughness in mind. Using the latest in computer aided design software and vessel computation analysis, our engineering team is leading the industry with modern vessel design. All hull and superstructure components are cut with a computer controlled (CNC) router. The structure of our boats are designed using the marine industry rules and regulations published by LLoyd's Register and ISO.

Performance Fins: With our performance fins, located below the collar, the boat stays flat in the corners and provides unmatched performance while greatly reducing heal.

ABYC Rigging Compliance: This boat comes with shock mitigated seating as a standard option.

Shock Mitigated Flip up Bolster Seating: Also a feature on this boat is the optional port-o-potty tucked away out of site to provide addition room in the cuddy cabin and additional storage on the boat. Varying grades of shock mitigation seating are available as options.

BOAT PICTURES



OPTIONS

Please call to discuss options. This boat can be ordered with options that are not shown below. The lists shown below are just some of the available options we can design into your platform.

STANDARD FEATURES

Hull Features:

5086 Aluminum Plate, Lifting Strakes and Performance Fins

Self Bailing Deck with Four High Volume Scupper Drains

3/4" Aluminum Hand Rails

Aluminum Wrapped Polyethylene Foam Under Decks

Removable Center Deck Plate for Fuel Tank Access

Aluminum Welded, Baffled, Epoxy Coated Fuel Tank

Optional - Cross Over System with Vented Tunnel Hull

Welded Bow Eye and Welded Stern Eyes

Welded In Speed Shoe Pad in Bottom Plate

Anchor Locker

Six Welded On Cleats

Welded on Anode Mounts



Rigging Features:

316 Stainless Steel Hardware

SS Internal Lifting Eyes

FAST (Foam Air Stabilized Technologies) Collar System

Epoxy Painted Side Sheets Behind Collar System

Two Sport Marine Grade Seats

Driver and Passenger Shock Mitigated Seating

Rear Storage Seats and Cushions

Navigation Lights

Anchor Light

Glove Box

Fuel Gauge

Tachometer

Compass

Navigation Horn

Two 12V Electrical Plugs

Port and Starboard Wipers

Electric Bilge Pump w/ auto switch 2000GPM

Fuel Water Separator

Hydraulic Steering

Robust Rigging and Electrical System with Dedicated Engine and House AGM Batteries

Safety Walk Non-Skid

Swim Step and Fold Down Ladder

Four Folding Cup Holders



Standard Trailer:  Galvenized or Aluminum Trailers with OTR Straps





Optional Upgrades

Collar Options:

Color Choice

Rub Stake Color Options - Grey or Black



Fishing Package:

Bait Well w/Aerator

Downrigger Mounts

12V ACC Plugs for Downriggers

 Fish Box

 Fresh Wash Down Pump

Rod Holders

 Hi Lift Trolling Motor Mount (Single Engine Configuration)



Other Available Options:

Hydraulic Jack Plate

VHF Radio

Upgraded Shock Mitigated Seating

Upgraded Upholstery

VHF Radio

Tilt Steering Helm

Canvas Bimini Top

Navigation Package

Radar Package

Stereo System with Four Speakers

Tow Mount on Arch

SS Cup Holders

Prices and Specifications Subject to Change Without Notice. Photos May Show Optional Equipment

Boat Characteristics are Based on Testing Done by Life Proof Boats -  Customer Realized Values May Vary
