27FT - 10' Beam Full Cabin

"The Pocket Cruiser"

Collar color Black/ Red



Boat Brief:

This version of our 27FT Full Cabin we are calling the "Pocket Cruiser". It is going to be setup for anyone looking for that perfect cabin cruiser that can also do close to 60 mph. A grand sport of sorts. The boat has a drop bow door with walk through cabin so you can find adventure where ever it takes you.

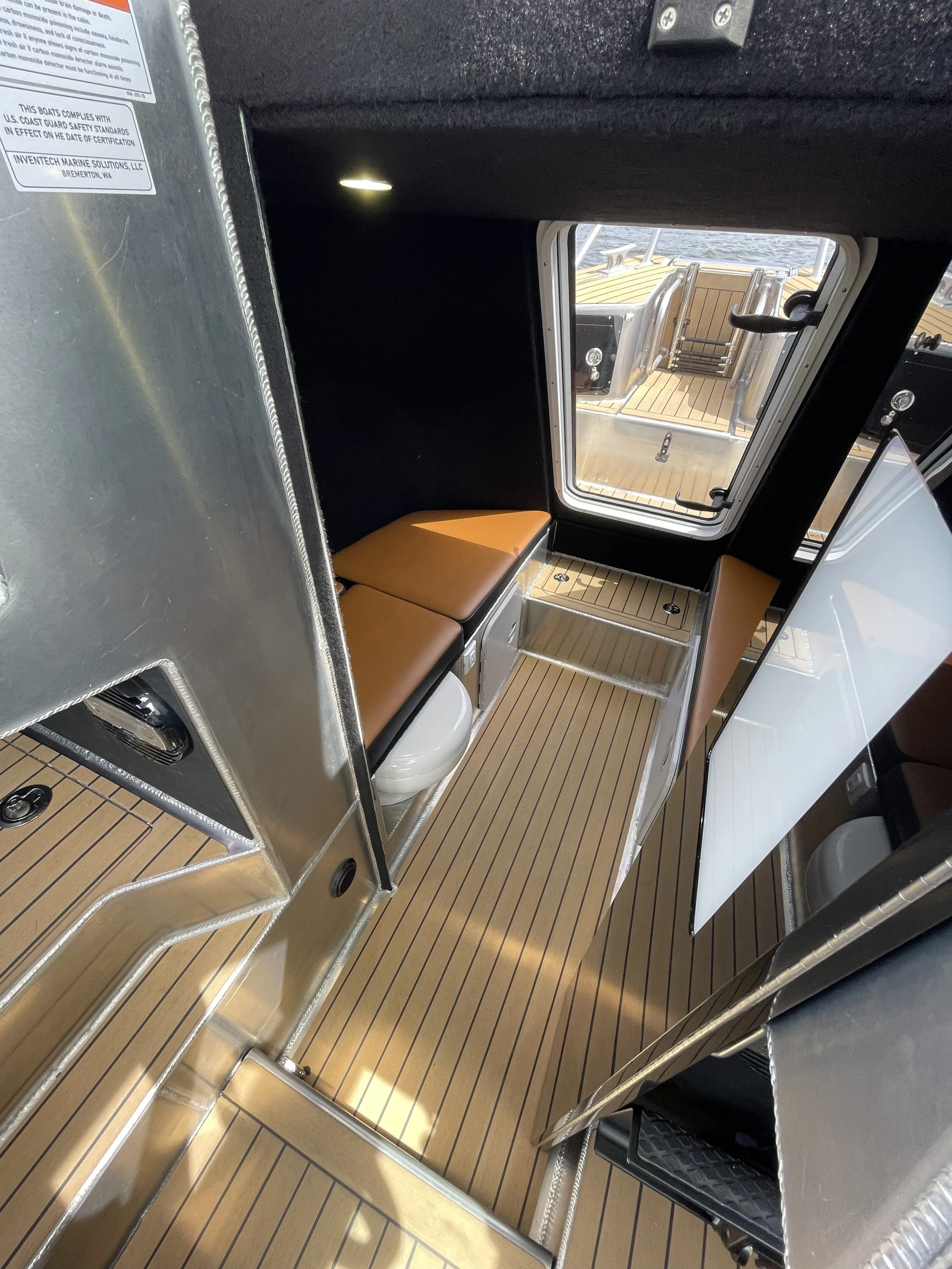

Inside the boat you will find a place for a sink, stove top, refrigerator, and flushing head. So it has everything you need for a weekend getaway. The layout has a side entry door, with a bench along the aft house bulkhead and table.

The boat is complete and will be showcased at the Seattle Boat Show!

Give us a call to see the boat and schedule a test drive today!

Boat Characteristics

Speed: ................................................  50 + mph w/ twin 250HP Honda IST Outboards

Hull Length: ......................................  27'

Beam with Collar: ............................  10'

Deadrise at Transom: .....................  22 Degrees

Deadrise at Entry: ..........................  48 Degrees

All Aluminum Construction: ........  Only 5086 H116 Plate Used

Fuel Capacity: .................................  128 Gallons

Fuel Consumption:.........................  2.14 mpg cruise @ 30mph

Dry Weight: ......................................  8,200 lbs



Boat Features

◦ PROPULSION SYSTEM

Twin 250HP Honda IST Outboards

Stainless Steel Four Blade Propellers

Trilux 33 Bottom Paint



◦ HULL & DECK

.250 - 5086 Alloy Hull and Side Sheet Plates

Performance Wings Below Collars for Increased Lift and Handling Characteristics

5086 Alloy Performance Lifting Strakes

.190 - 5086 Alloy Deck Plates

Self Bailing Decks with High Volume Scupper Drains

Storage and Equipment Lockers Fore and AFT

Anchor Locker with Passive Drain

Large Transom Storage Locker with Natural Vents

One (1) Sacrificial Hull Anode



◦ CONSOLE & DASH

Starboard Helm with Tilt Steering Column



◦ SUPERSTRUCTURE

Walk Through Cuddy Cabin

Drop Bow Door with Telescoping Ladder



◦ SEATING, SEAT STORAGE & UPHOLSTERY

One (1) Shox S3 Shock Mitigating Seats

Arm Rest Mounted Engine Controls



◦ COLLAR & UNDER DECK FLOTATION

Patented Pending FAST Heavy Duty Reinforced Collar System with Rub Strake and Life Lines

Collar Color: TBD Upon Customer Request

Epoxy Coated Side Sheets

Closed Cell Polyethylene Foam filled Fiberglass Bags Under Decks for Redundant Flotation in Emergency Conditions, and Sound Abatement



◦ COATINGS, COVERINGS & LETTERING

Black Rubberized Non-Skid Deck Covering



◦ TOWING, LIFTING & ATTACHMENT POINTS

Eight (8) - 8" Cast Aluminum Welded On Cleats

Welded Three (3) Hole Bow Eye

Two (2) SS FWD Lifting Eyes



◦ ELECTRICAL SYSTEM & POWER GENERATION

ABYC Compliant Electrical System with Sealed Wire Connections

House Battery System 12VDC - One (1) Marine Grade AGM Battery with Switch

Two (2) Marine Grade AGM Optima Start Batteries with Switches

Blue Sea Marine Grade House Breaker and Fuse System

Back-lit Switch Panel with Marine Grade Switches

One (1) 110v outlet with USB plug

120vac 30amp Shore Power Panel

1200 WATT Magnum Modified Sine Wave Inverter/ Charger



◦ LIGHTING

LED Courtesy Deck Lights Throughout

Interior White/Red LED Cabin Lighting Throughout

LED Navigation Lights (Running and Anchor)

Two (2) Lumitec LED Flood Lights

One (1) Seadog LED Search Light



◦ NAVIGATION & COMMUNICATION EQUIPMENT

Magnetic Compass with Back-Lighting

Navigation Horn

Simrad NSS12 EVO2 with Navigation and Sonar

VHF Radio and Antenna

Fusion RA70N AM/FM/XM Marine Grade Stereo with Three (6) 6" Fusion Speakers



◦ SAFETY, RESCUE & DIVING EQUIPMENT

Two (2) Fire Extinguishers

One (1) 2000GPH Automatic Bilge Pump

One (1) Cabin Sump Pump



◦ CABIN AMENTIES

Macerating/ Flushing Jabsco Toilet

900 Watt Microwave

13" Oval Sink

Norcold 12V Fridge

Alcohol Stove Burner

Webasto AT40 Diesel Forced Air Furnace

20 Gallon Fresh Water Tank

9 Gallon Black Water Tank with Pump Out

Raw Water Washdown System



◦ FUEL SYSTEM

128 Gallon Welded Aluminum, Baffled Fuel Tank, with Epoxy Coating



◦ TRAILER

9,000lb GVW EZ-Loader Trailer with OTR Straps



BOAT SHOW SPECIAL PRICE : $249,999





*I.M.S. Reserves the right to change specifications
